Setting the number of layers limit
When stacking multiple layers of the same item, you can specify the “maximum number of layers.”
However, when using the C-Engine 2,it is no limit to the total number of stages when stacking different items.

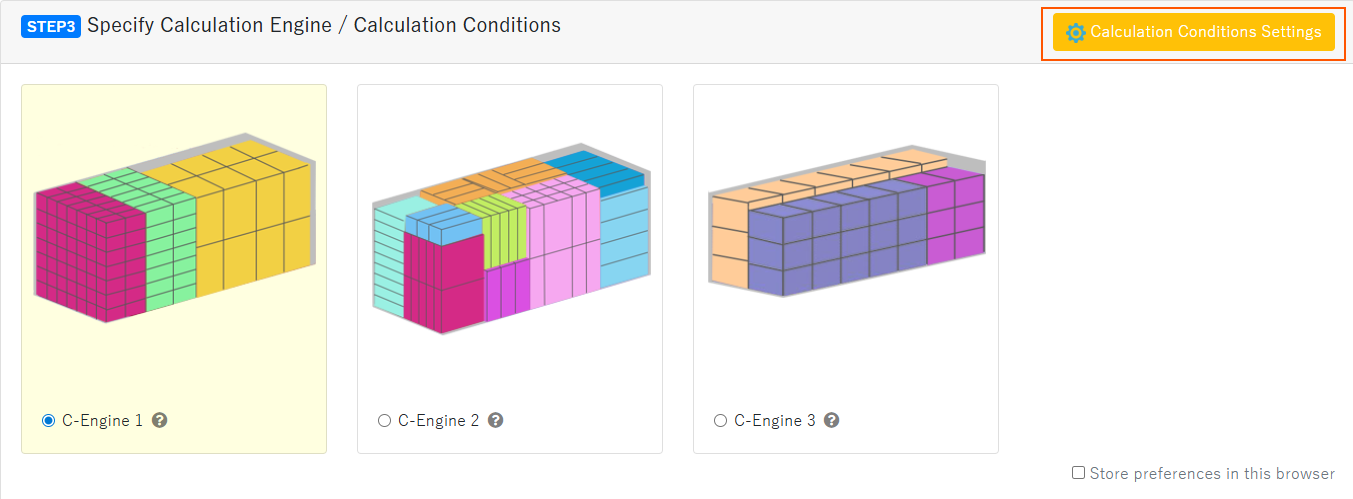

The number of layers can be specified in “Calculation Conditions Settings.”
※If you want to change the settings after calculating, please execute “Recalculate”.

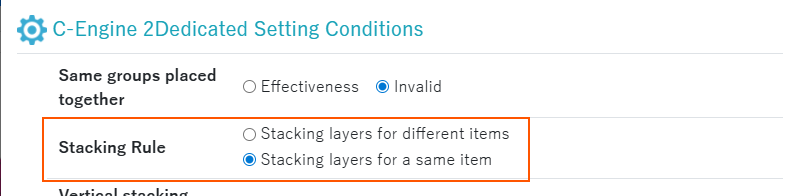

When calculating with C Engine 2, please set the “Stacking Rule”.
About “Stacking Rule”
Stacking layers for different items
Specified number of layers of the same item (e.g., A) has been reached, no more will be loaded.
If the specified number of layers is not reached, it stacking multiple layers based on the product with the fewer specified layers.
Stacking layers for a same item
The same item (e.g., A) will be loaded up to the specified number of layers.
It is also possible to load different products (e.g., B) on top of it.
How to set the number of layers limit from the screen

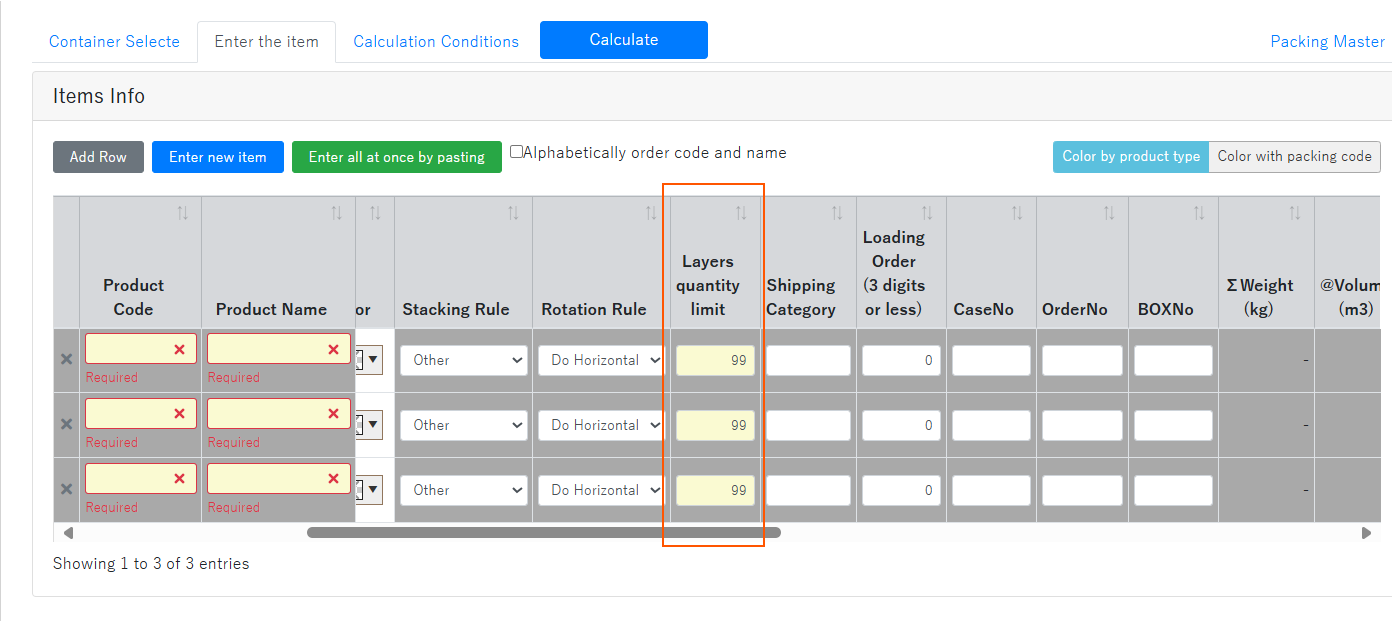

Specify the number of layers in the “Layers quantity limit” field in the “Enter the item” tab.
How to set the number of layers limit from “Create Simulation Data”

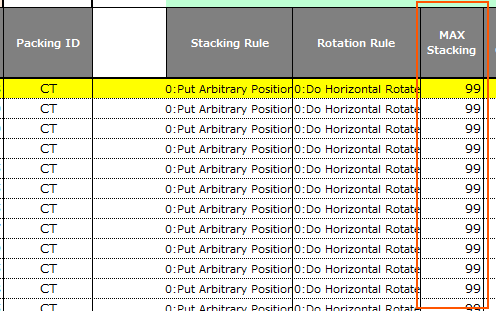

Specify the number of layers in the “MAX Stacking” field.
