About packing strength

Packing strength can be set for each packing code.
In loading, the stronger items should be placed on the bottom and the weaker ones on the top

Strength Value

Strength can be set from “0 to 9”, with a smaller number indicating higher strength.

  • Packing Strength「9」：Very weak (suitable for placing on top)
  • Packing Strength「0」：Very strong (suitable for putting down)

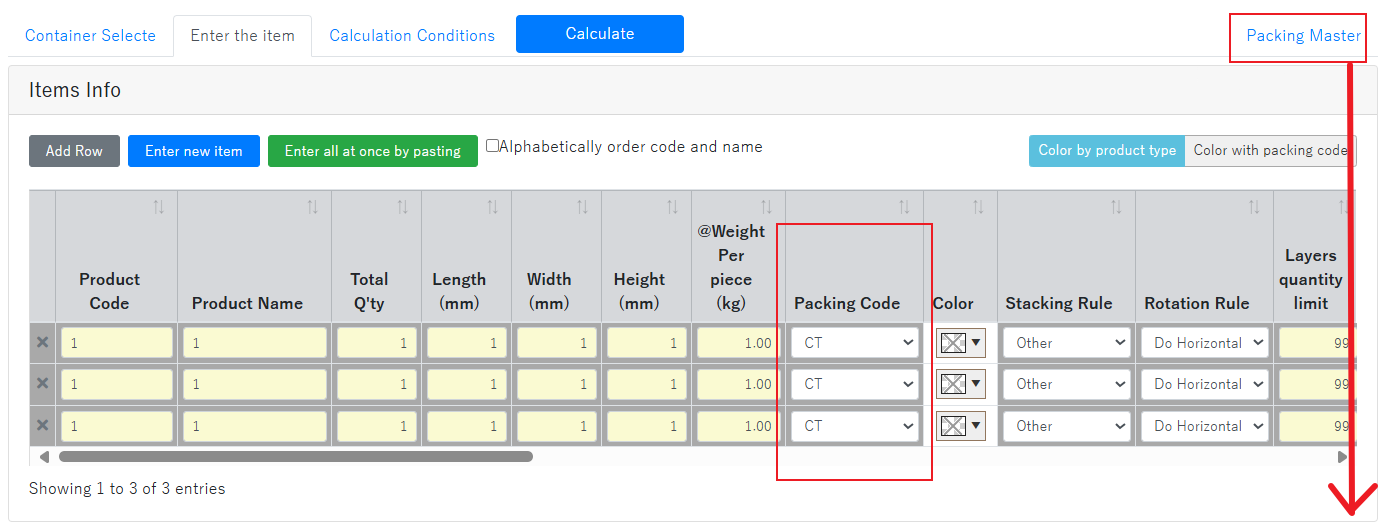

How to set the packing strength from the screen

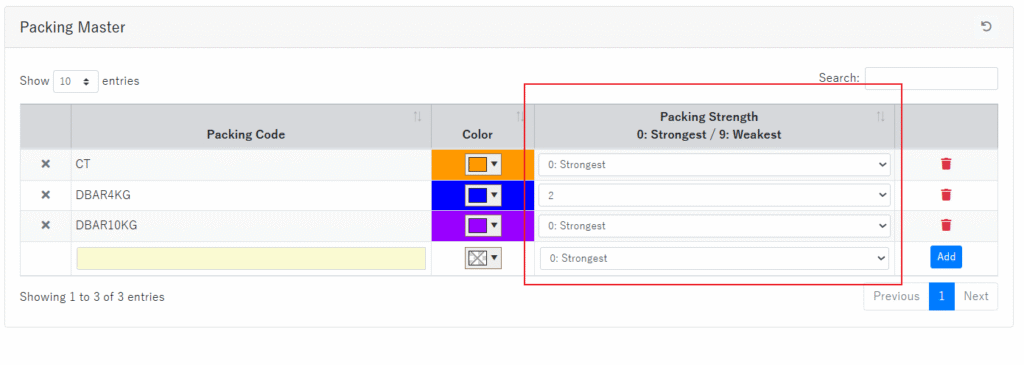

Strength can set for each packing code on the “Packing Master”.
Strength can set 0 to 9, the smaller the number, the higher the strength (Example: 0 = very strong, 9 = very weak).
The packing code can be set as desired.

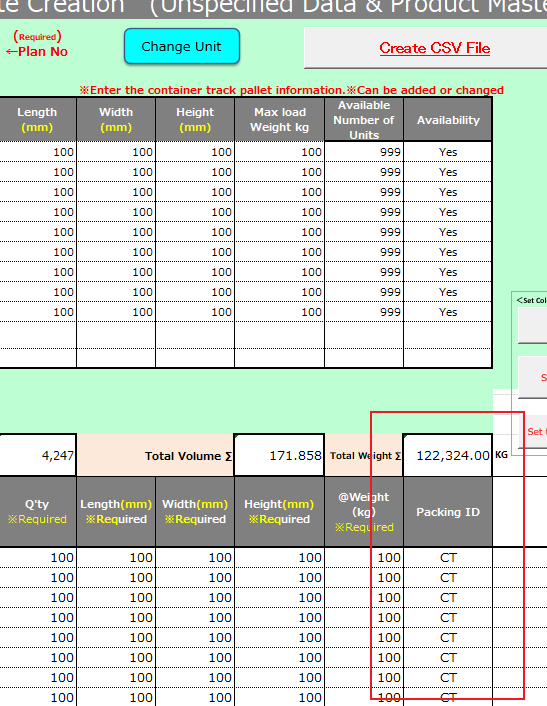

How to set the packing strength from “Create Simulation Data”

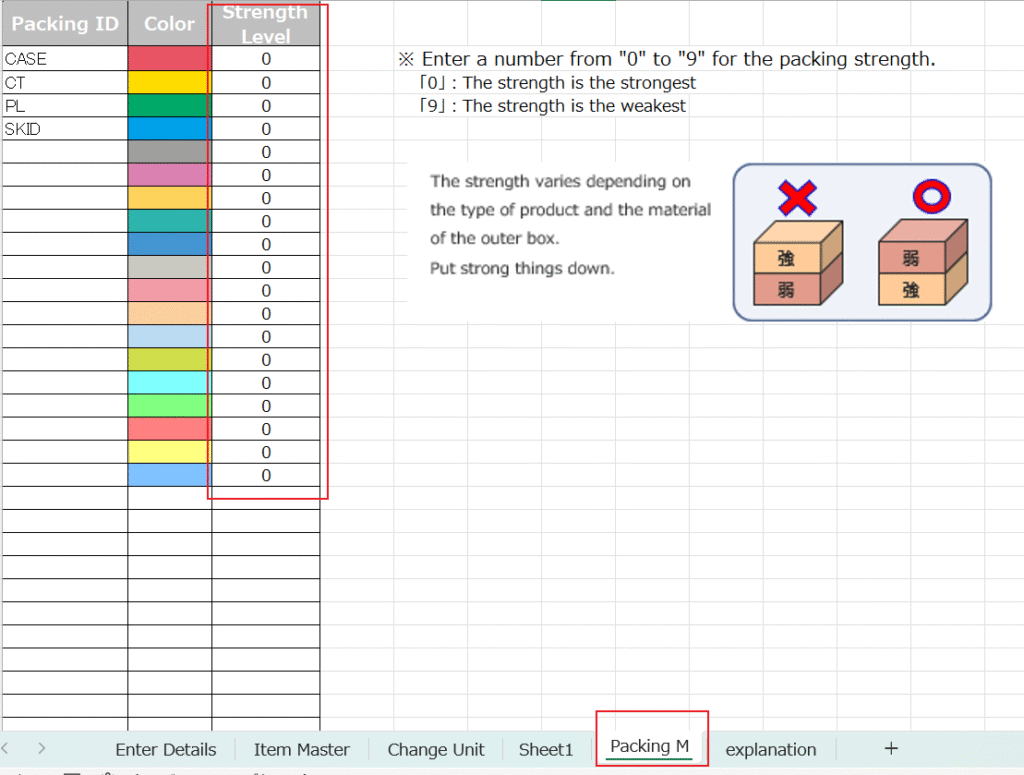

The strength of each packing code can be set in the “Packing M” sheet.
Strength can set 0 to 9, the smaller the number, the higher the strength (Example: 0 = very strong, 9 = very weak).
The packing code can be set as desired.
