About cargo placement direction

The following settings can be made for the length of the container (or track).

The following rotation enable / disable can be set for each product.

0:Do Horizontal Rotate
1:Do not rotate(“Vertical” / “horizontal” with respect to container length)
2:Free rotation is possible

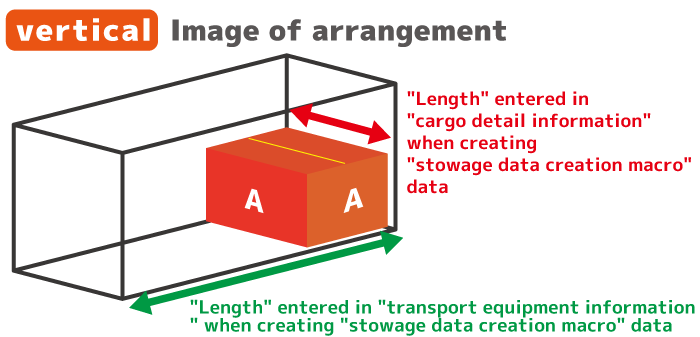

In the case vertical to the container

Place the item length (L dimension) vertical to the container length.

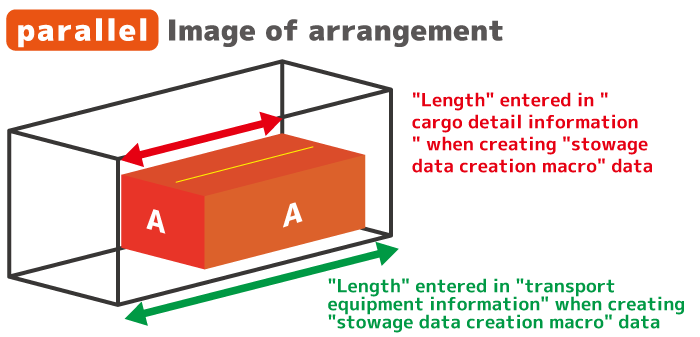

In the case parallel to the container

Place the cargo length (L dimension) parallel to the container length.

Procedure for setting the cargo placement direction

Step1：Set the rotation rule to “Do not rotate “

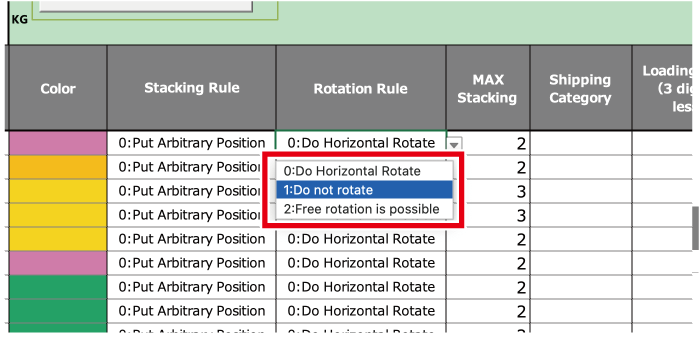

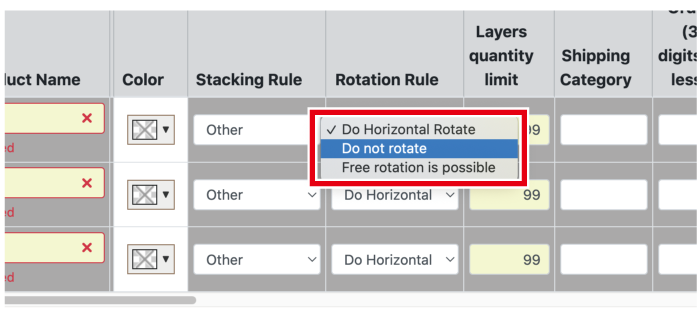

When creating the “Loading data creation macro” data, set the rotation rule of [Cargo Detailed Information] to “1: Cannot rotate”.

Step2：Select a calculation engine

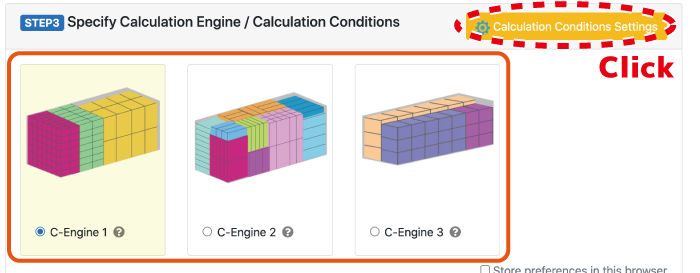

Specify the engine from [Speify calculation engine / conditions] in the loading plan creation. Then click the “Calculation Conditions Settings” button.

Any type of engine is possible.

Reference:For manual data entry: Create data and enter calculation conditions
Reference:For Data Entry Macros: Data Import – Automatic Calculation

Step3：Set calculation conditions

“Calculation Conditions Settings” window will open.

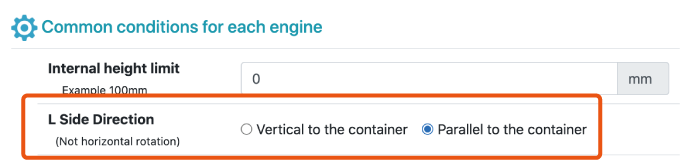

Select the following in “L Side Direction” in “Common conditions for each engine”.
・ “Vertical to the container”
・ “Parallel to the container”
